| PARAMETER |
General description
|
|
|
|
 |

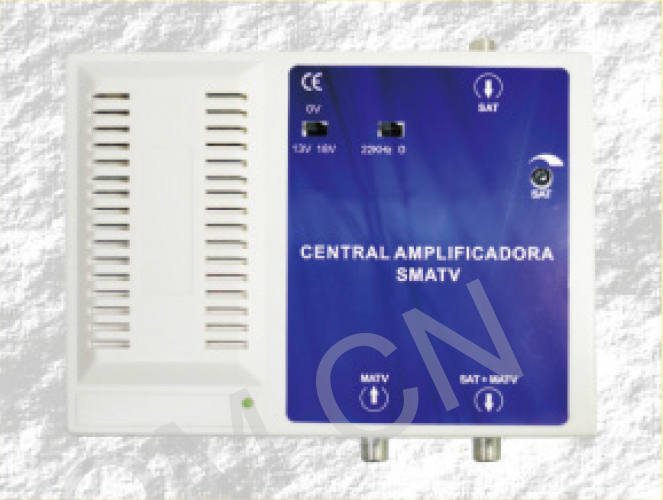

| PG10 |
General description
Central 1 entry FI/1 input mix tv
*1 entry sat 950-2150MHz amplifier
*1 entry mix TV 47-860MHz
*LNB feed，signal generation of tension
changes to tone H/V and H/L band
*Provision for grounding |
|
|
|
 |

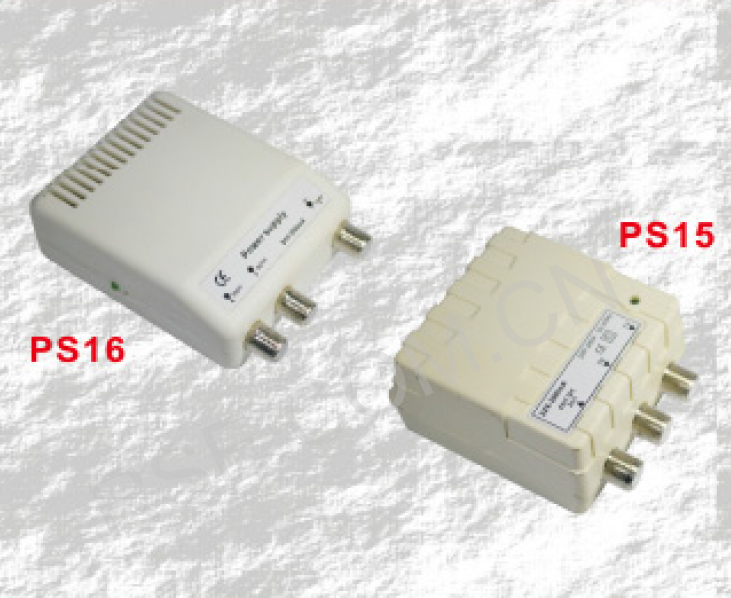

| PS15-1 PS16-1 |
General description
*Power supply for mastamplifs *The power adopt the switch power *The 110V-240V wide voltage input,offer the steady 12V or 24V voltage to antenna *The antenna signal can be assign two outputs *The signal isolas high and loss lower |
|
|
|
 |

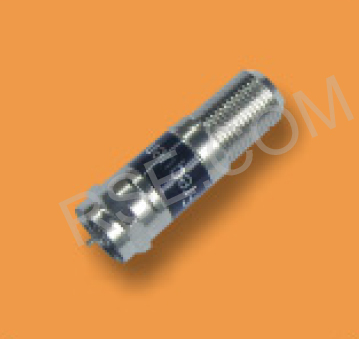

| PSE-G103 |
General description
Features： *Nickel-plated,solid brass body *Monolithic ceramic printed circuit board, ensuring rugged construction *Etchcd glaze-type resistors provide ±5% accuracy and excellent return loss *22-gauge spring steel center pin |
|
|
|
 |

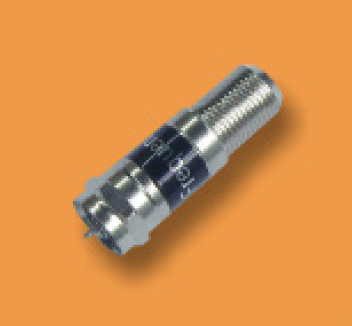

| PSE-G104 |
General description
Features: *Blocks DC *Solid brass body with nickel plating *Female to male fittings *22-gauge spring steel center pin |
|
|
|
 |

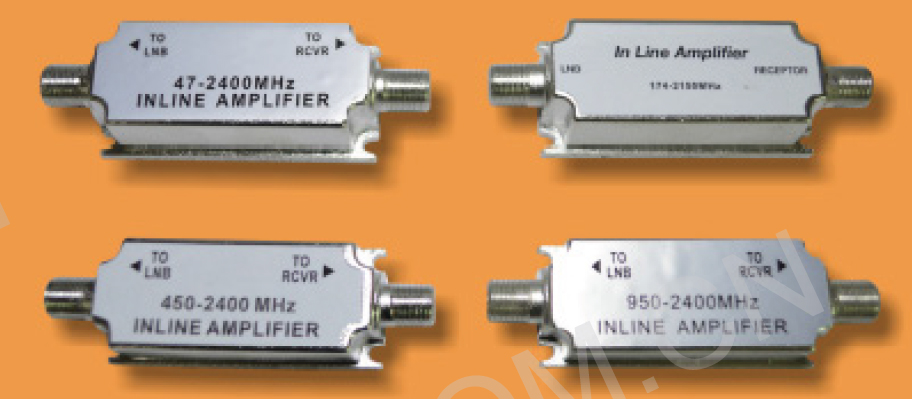

| SA01 |
General description
*Zinc Diecast Housing Nickel-Plated *Impedance:75Ω *Feedthrough DC Power Via Coaxial Cable *Model With Slope Gain Designed For Equilibrating Cabele Loss *Power Pass：11-20VDC,40mA *500mA Max Power Pass For LNB Operation *Screening：40-470MHz≥75dB,470-8... |
|
|
|
